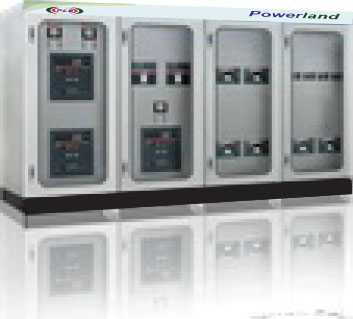

| L.T Switchgear | |||
| General | Low-tension switchgear comprises the unit’s designed for rated voltage of up to 600V, current range 7200A. Switchgear insulation designed to withstand rated voltage is also subjected to over voltage due to lightings and breaker operation transients. Depending on the condition’s switchgear installations are designed and manufactured for outdoor and indoor service suitable form mass production, transportation handling and convenient operation, the weight of the equipment is kept as low as practicable. Powerland Engineering Ltd, L.T panels are equipped with built-in mechanical interlocks for safety and the breaker compartment is so designed, that it ensures the inter changeability with the identical circuit breakers. |  |
|
| Standard | Powerland Engineering Ltd, L.T Switchgear with Models PLELT- 01DS, PLELT-02DS & PLELT-03DS, are available which are equipped with Air Circuit Breaker respectively with current Transformer, Amps / Volt meter, Indicator Lamps, Bus-bar etc. according to the panel is designed and assembled in accordance with IEC 298. | ||
| General Technical Data (L.T Switchgear) | Rated Voltage
Rated Current Rated Short Time Current Frequency / Phase Dimension (W x D x H) Model No |
: Up to 660V
: Up to 7200A : Up to 150KA : 50Hz / TP & / TPN&E : 600-1000×400-1000×1500-2100in mm : PMXLT-01DS, PMXLT-02DS, PMXLT-03DS, |
 |
