| H.T Switchgear | |||

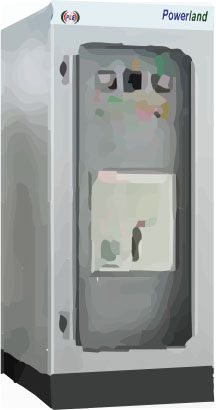

| General | High-tension switchgear comprises the unit’s designed for rated voltage of 12KV current range 630A. Switchgear insulation designed to withstand rated voltage is also subjected to over voltage due to lightings and breaker operation transients. Depending on the condition’s switchgear installations are designed and manufactured for outdoor and indoor service suitable form mass production, transportation handling and convenient operation, the weight of the equipment is kept as low as practicable. Powerland Engineering Ltd, H.T panels are equipped with built-in mechanical interlocks for safety and the breaker compartment is so designed, that it ensures the inter changeability with the identical circuit breakers. The cubical design of 15kv and 630A is also compatible with our SF6 and Air Circuit Breakers (VCB). The panels are fully compartmentalized and extensible on both sides, consisting of bus-bar chamber with adequate air clearances, PT compartment, CT and cable termination compartment, breaker compartment and metering chamber |  | |
| Standard | Powerland Engineering Ltd, H.T Switchgear with Models PMXHT- 01DS, PMXHT-02DS & PMXHT-03DS, are available which are equipped with Vacuum Circuit Breaker respectively with current Transformer, Potential Transformer, IDMT Relay, Amps / Volt meter, Indicator Lamps, Bus-bar etc. according to the panel is designed and assembled in accordance with IEC 144. | ||
| General Technical Data (H.T Switchgear) | Rated Voltage: 12 KV/11 KV Rated Current: 400A, 630A, 800A Rated Short Time Current : 20KA, 25KA, 31.5KA Frequency / Phase: 50Hz / 3-Phase Interrupting Capacity: 250MVA, 350MVA Type of Breaker: Spring charged Hand / Motor Operated Fixed / Draw Out Type Dimension (W x D x H): 900mm X 1050mm X 2100mm | ||
| Advantage of VCB |
|  | |
| Current Transformer (C.T) | Cast Resin Insulated, 11KV Dry type Double Core, Current Transformer, (C.T) with ration —————-/5/5A, 1st core for metering 2nd core for protection. |  | |
| Potential Transformer (P.T) | Cast Resin Insulated, Double Pole, Potential Transformer (P.T) , 11000V / 110V, Class 0.5,50VA |  | |
| IDMT Relay | Triple pole solid-state/indication Type IDMT Relay for over current earthnut and short circuit protection. |  | |
